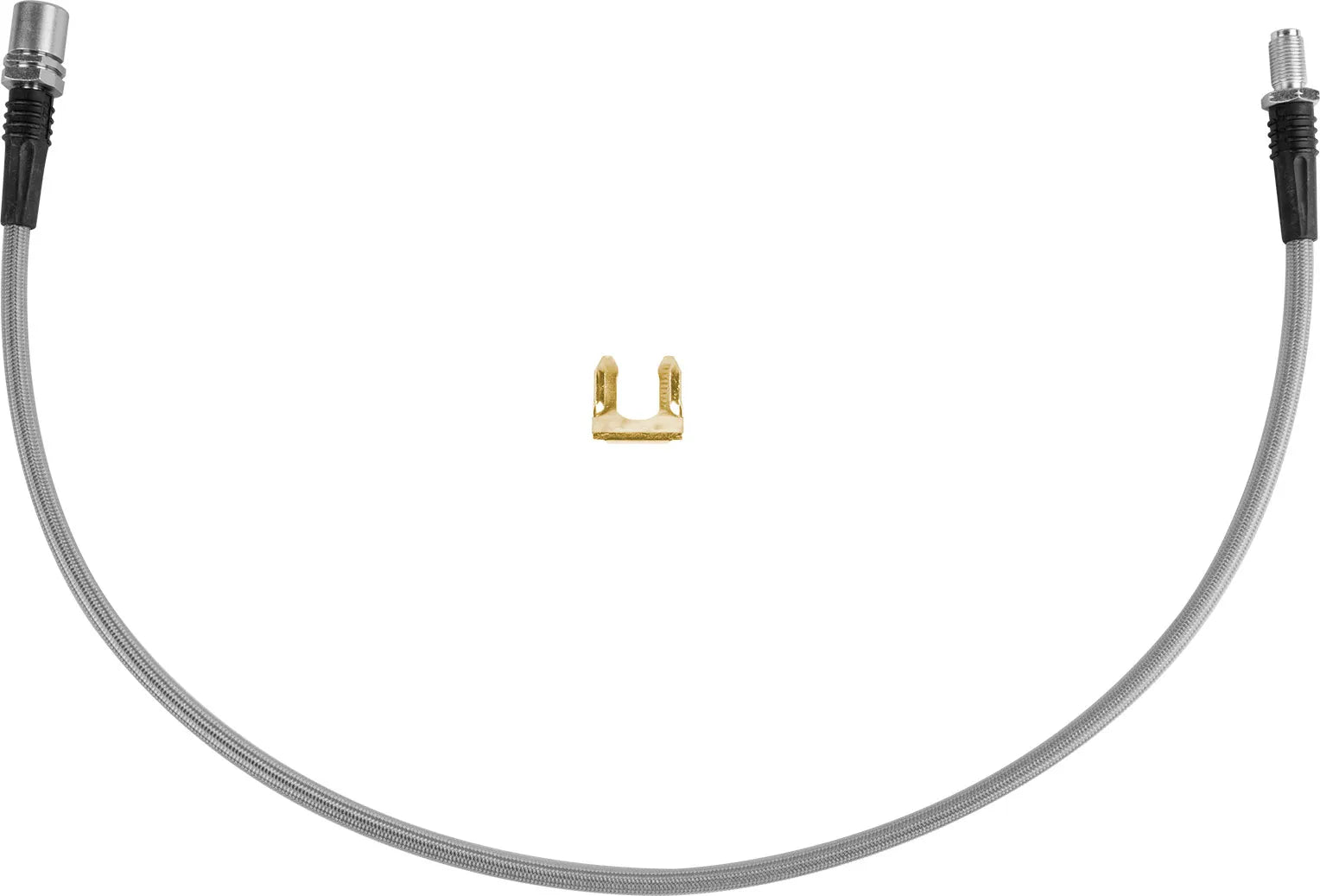

Trail-Gear Extended Rear Stainless Steel Brake Line

Eliminate brake line tension and restore solid pedal feel on your lifted rig. Factory rubber brake lines are too short to handle the increased axle droop of suspension lifts, risking over-extension, tearing, or sudden brake failure during deep off-road flex. Additionally, aged rubber lines swell under pressure, creating a spongy brake pedal.

The Trail-Gear Extended Rear Stainless Steel Brake Line measures 26 inches in length, providing the necessary slack for suspension lifts up to 3.5 inches. Engineered with an inner PTFE (Teflon™) core wrapped in high-tensile stainless steel braid and protected by a clear PVC jacket, this line eliminates expansion under heavy braking while withstanding harsh trail debris and abrasion.

Key Features & Benefits

• Designed for Suspension Lifts: 26” (660 mm) extended length accommodates up to 3.5” (89 mm) of rear suspension lift and maximum axle droop.

• DOT Compliant: Exceeds all FMVSS-106 Department of Transportation standards for highway safety and reliability.

• Firm Brake Pedal Feel: PTFE inner line with braided stainless steel shield prevents line expansion under pressure for immediate hydraulic response.

• Corrosion & Debris Shield: Clear outer PVC coating protects the stainless braid from trail grit, mud, and chafing.

• High-Pressure Rating: Rated for 1,750 PSI operating pressure and a 7,000 PSI burst pressure.

• Direct-Fit Fittings: Includes factory-spec M10-1.0 inverted flare zinc-plated steel fittings and (1) retention clip.
