TRAIL-GEAR WELD-ON LOWER CONTROL ARM ALIGNMENT CAM TAB GUSSETS '05-'15 TACOMA, '03-'09 4RUNNER, '07-'09 FJ CRUISER AP-305655

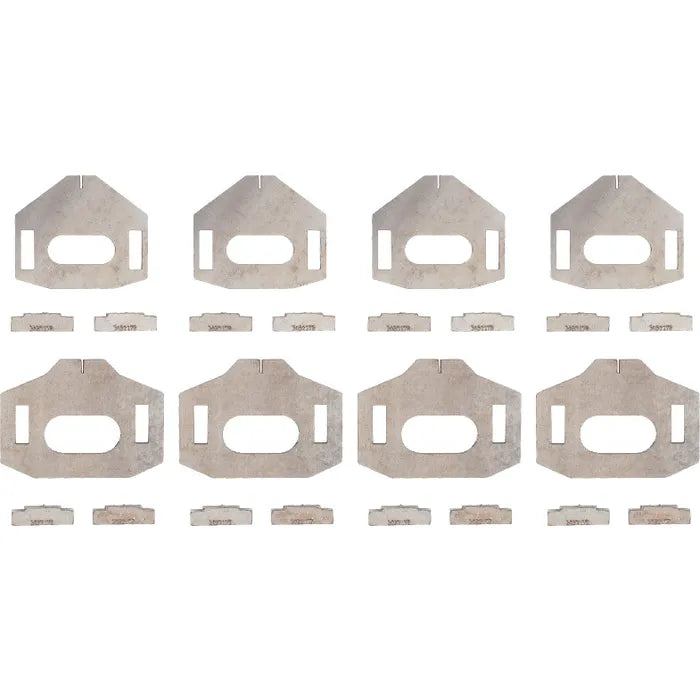

Weld-on Lower Control Arm Alignment Cam Tab Gussets

A great alignment can mean the difference between a truck that is a pleasure to drive and one that brings frustration. Those of us who push Toyota Tacoma, Tundra, 4Runner, or FJ Cruisers to the limits of a stock vehicle have found that factory lower control arm alignment cam tabs can be bent out of shape after a good bounce off of a boulder or slide down a ledge. Once bent, the cam tabs no longer serve their purpose to keep lower control arm bolts in place and the truck may develop a pull to the left or right along with uneven tire wear.

All-Pro Weld-on Lower Control Arm Alignment Cam Tab Gussets are designed to replace the thin factory cam tabs with thick plates that won't bend even under harsh off-road abuse. Installation requires grinding off the old plates and welding new tabs in place. Are you planning to upgrade your control arms soon? We recommend taking the extra time to reinforce the mounting tabs while you have it disassembled. It's the little steps done well that ensure years of reliable use on and off-road.

AVAILABLE OPTIONS:

• AP-305653 - 1995-2004 Tacoma, 1996-2002 4Runner
• AP-305655 - 2005-2015 Tacoma, 2003-2009 4Runner, 2007-2009 FJ Cruiser
• AP-307417 - 2007+ Tundra
• AP-307416 - 2016+ Tacoma, 2010+ 4Runner, 2010+ FJ Cruiser

SPECIFICATIONS:

• 1/8” thick SAE 4130 chromoly steel plates
• 1/4" thick ASTM A36 steel tabs
• CNC laser cut
• Installation requires grinding and welding
